Application: Paddle mixers

Paddle mixer

Paddle mixer type: MFK-2400 with column loading for 200l stuffing trolleys

Application:

The paddle mixer is designed for mixing stuffing in meat, sausage, delicatessen, fish, fruit and vegetable and confectionery plants.

Design:

Stable and robust construction – internally polished tank made of EN 1.4301/1.4307 stainless steel. The device utilizes a double mixing system that allows for thorough and even mixing of all filling ingredients. The hygienic and ergonomic design ensures easy operation, cleaning, and maintenance. A wide range of applications thanks to the specially designed bowl and paddles. High-quality components.

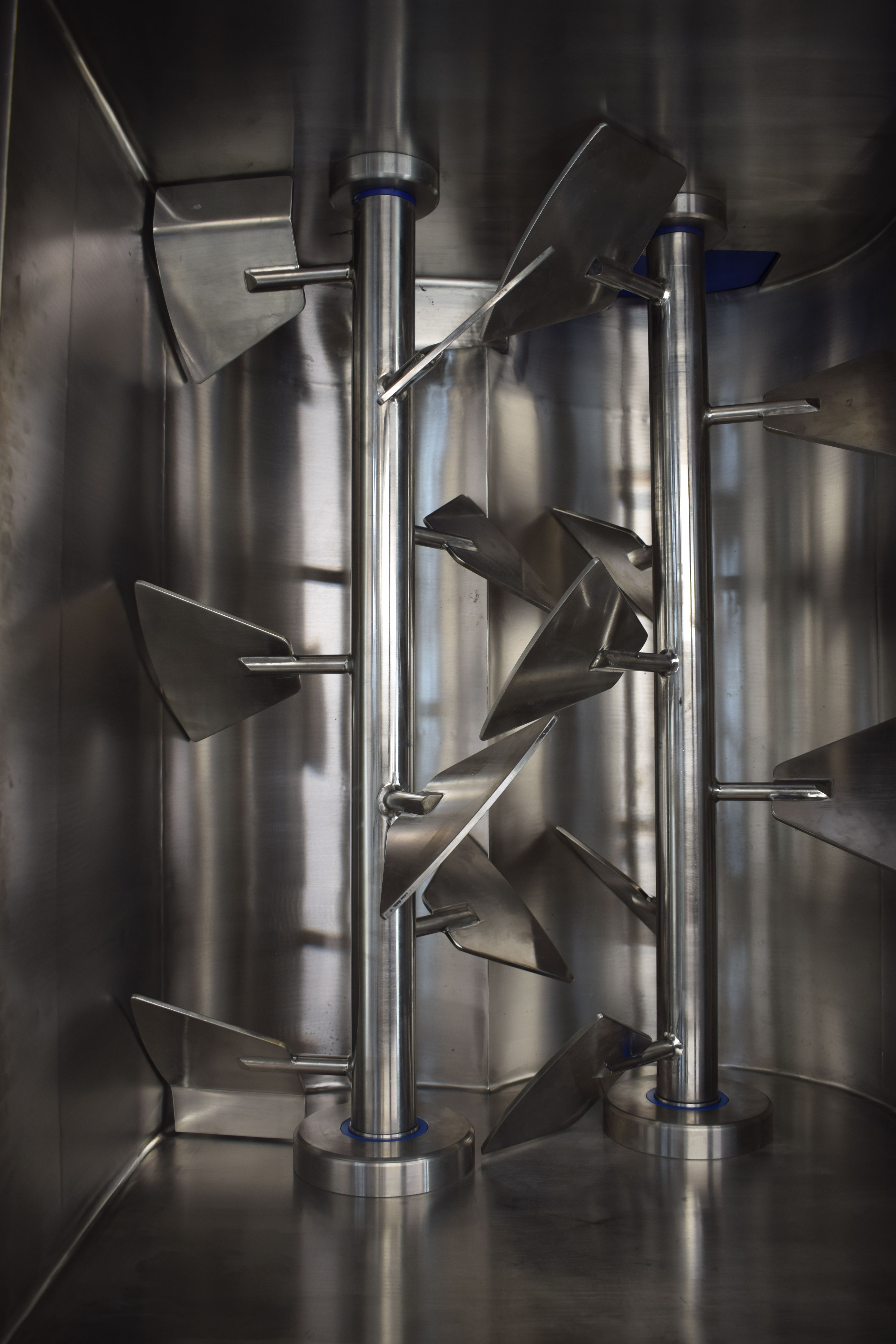

Mixing:

The versatile system of overlapping mixing shafts is suitable for a wide range of mixed products

Control:

The Pro-face controller with a 5.7" touchscreen allows you to program 6 mixing cycles with variable speed and direction. Monitors all sensors and displays the current position of moving parts. In the event of a malfunction, errors and possible causes are displayed.

Seals:

The mixer uses modern fast-split gasket seals. Replacing the seal takes just minutes.

Additional equipment for the mixer:

• Automatic water dosing system

• Free-standing service platform

• Weighing system

• Vacuum system

• Elevated machine for unloading into big box containers

Type: MFK-1500 MFK-2400
Tank capacity [l] 1500 2400
Maximum recommended load [kg] 1125 1800
External dimensions LxWxH [mm] 2600x1500x2000 3402x2026x2067
Mixer weight [kg] 2000 3400
Loading column weight [kg] 280 300
Main engine rated power [kW] 15 22
Loading column rated power [kW] 0,75 0,75
Touchscreen controller Pro-face 5,7" 5,7"
Mixing shaft speed adjustment range [rpm] 4-30 3-24
Opening the lid of the tank Pneumatic Pneumatic
Opening the discharge flap Pneumatic Pneumatic
Multi-stage shaft sealing Fast split gasket Fast split gasket
Power supply [V/Hz] 400/50 400/50
